Sonic's Air Nozzle Manifold Blow-Off System Transforms Factory Automation

Overview

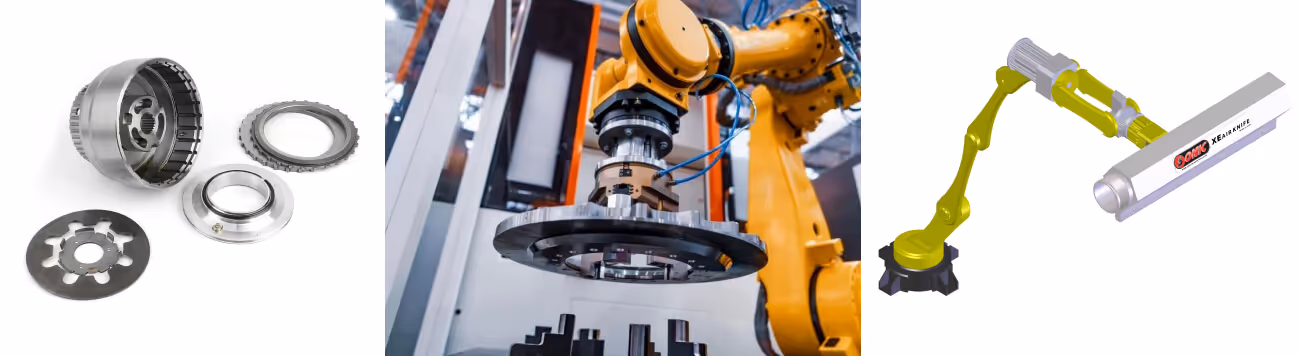

A Japanese leader in factory automation and a certified integrator of the largest maker of industrial robots in the world required a solution to remove excess machining coolant from the inverted cavity of clutch drum parts before the next machining center process. The excess coolant carryover from one machining center to the next created maintenance issues for the customer. The main objective was to reduce or eliminate coolant carryover, and equally important was to integrate the Sonic System into the available confined space.

‍

Solution

Sonic's Air Nozzle Manifold Blow-Off system was timed to the "flip" sequence, producing 26,000+ FPM (7,924 MPM) of impact velocity to blow off the inverted cavity while the machined part was stationary for 10 seconds.

‍

Result

Since the installation of the Sonic's air blow-off system, carry-over has been reduced by 90%, resulting in less maintenance of the robotic arm and components while maintaining the small footprint required for the limited installation space.
